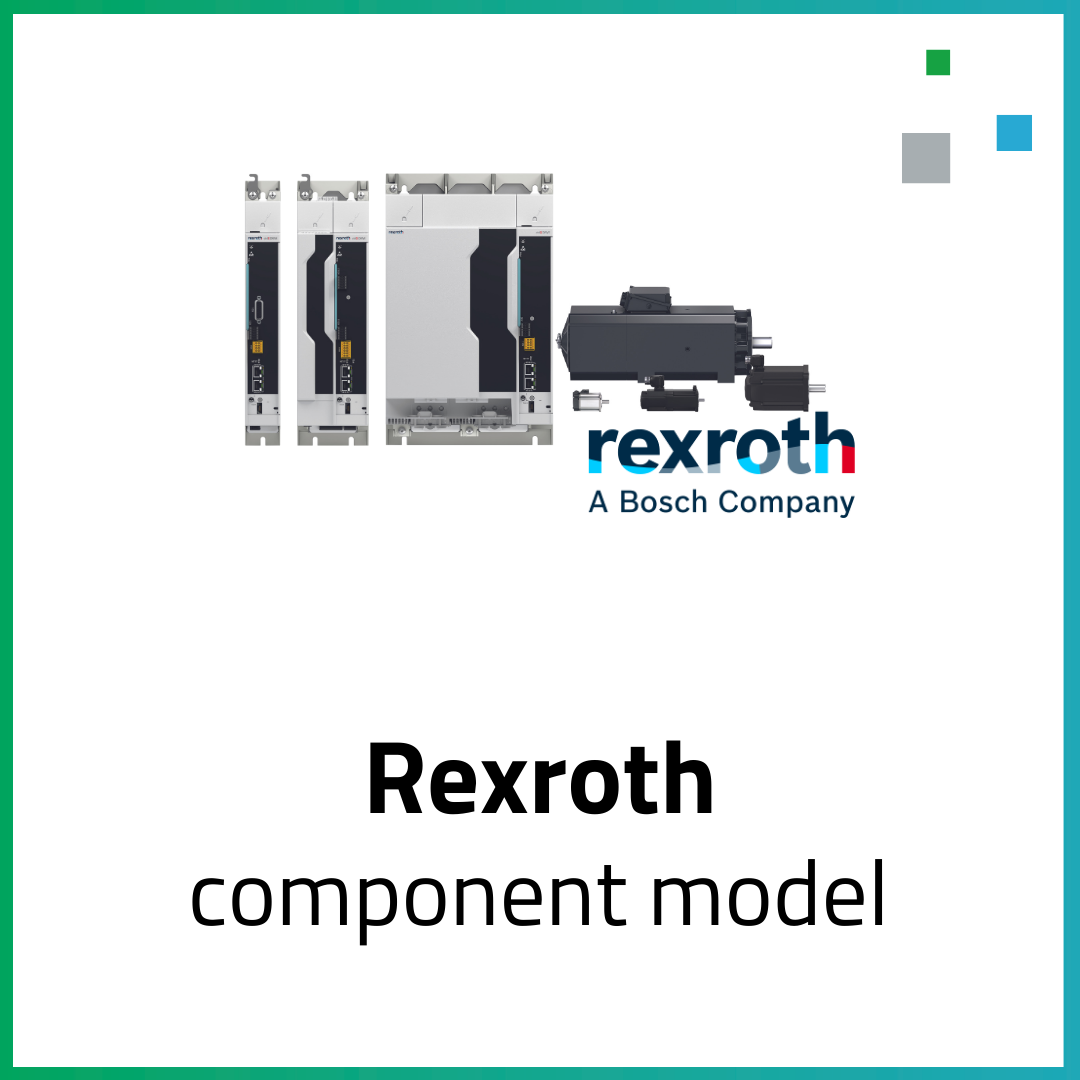

Bosch Rexroth ctrlX DRIVE & Motors
Bosch Rexroth ctrlX DRIVE & Motors
plus VAT
Couldn't load pickup availability
This configurable simulation model enables near-real-time testing of over 90 different ctrlX DRIVE hardware variants and several hundred motor variants in the Bosch Rexroth network.
Based on the individual, real firmware of the various ctrlX DRIVEs, almost all cyclic data is available to a PLC in the form of parameters and commands. This makes it possible to evaluate and optimize the performance, efficiency and stability of the drive system under conditions that are as realistic as possible. This means that the simulation model can even be parameterized like a real drive system via ctrlX DRIVE Engineering and, as a result, findings from the simulation can be rolled out seamlessly into the real world.
When calculating the dynamics, the following are taken into account: the electrical properties of the drive controller, including the control loops/control loop parameterization, the mechanical properties of the motor and the load conditions. The time behavior of the partially included supplier (e.g. in the XCS) is also taken into account from the perspective of the PLC.
Contact us via the contact form (https://store.machineering.com/pages/contact) or simply complete the checkout.
_____________________________
This configurable simulation model enables the near-real-time testing of over 90 different ctrlX DRIVE hardware variants and several hundred motor variants from the Bosch Rexroth portfolio.
Based on the individual, real firmware of the various ctrlX DRIVE, almost all cyclical data is available to a PLC in the form of parameters and commands. This enables users to evaluate and optimize the performance, efficiency, and stability of the drive system under the most realistic conditions possible. The simulation model can then even be parameterized like a real drive system via ctrlX DRIVE Engineering. This means that findings relating to the drive systems can also be seamlessly rolled out into the real world.
When calculating the dynamics, the following are taken into account: the electrical properties of the drive controller, including the control loops/control loop parameterization, the mechanical properties of the motor and the load conditions. The time behavior of the partly included power supply (eg in the XCS) is also taken into account from the PLC's point of view.
Contact us via the contact form (https://store.machineering.com/pages/contact) or simply complete the checkout.
